Waterbox Reef LX

Oz Aquarium

$8,599.99

SPECIAL ORDER ITEM NOT FOR DELIVERY

STORE PICKUP ONLY

PLEASE CALL THE STORE BEFORE PURCHASING A 2% REFUND FEE APPLIES TO NON DELIVERABLE PURCHASES

Please contact us to get an estimated delivery time

REEF LX 290.6

SKU: D4000
• Dimensions (LxWxH): 1836 x 750 x 650mm (72.3" × 29.5" × 25.6")
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 808 L/213.4 gals
• Total Volume: 1,091 L/288.3 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers

REEF LX 330.7

SKU: D4010
• Dimensions (LxWxH): 2,136 x 750 x 650mm (84.1" × 29.5" × 25.6")
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 943 L/249 gals
• Total Volume: 1,250 L/330.2 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers

REEF LX 380.8

SKU: D4020
• Dimensions (LxWxH): 2,448 x 750 x 650mm (96.4" × 29.5" × 25.6")
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 1,083 L/286 gals
• Total Volume: 1,450 L/383.1 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers

THE DISPLAY

A Seismic Aquarium

The REEF LX reigns as the foremost premium reef aquarium in our lineup. Each system includes euro-braced Ultra Clear Low Iron Display, Fully Assembled Cabinetry, plumbing kit and sump system.

Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
CNC precision Eurobrace with mesh lid reinforces the 19mm Ultra Clear Glass Viewing Panels.
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

THE PLUMBING

Safe, Silent and Tested for Performance

Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.


Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assemly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.

THE SUMP

Did you say filter roller?

The REEF LX sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.

Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.

Sump Diagrams

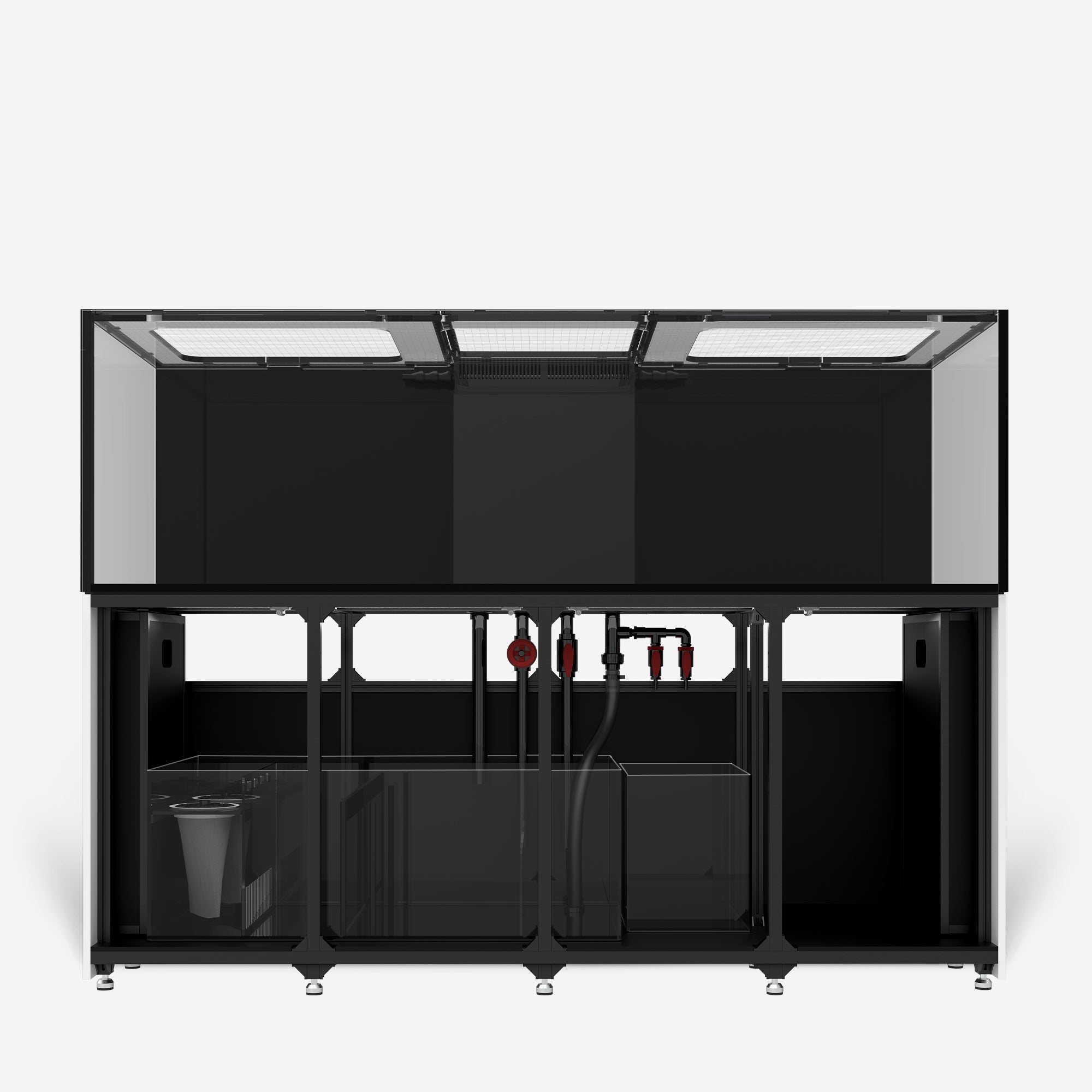

THE CABINETRY

Strength and Durability

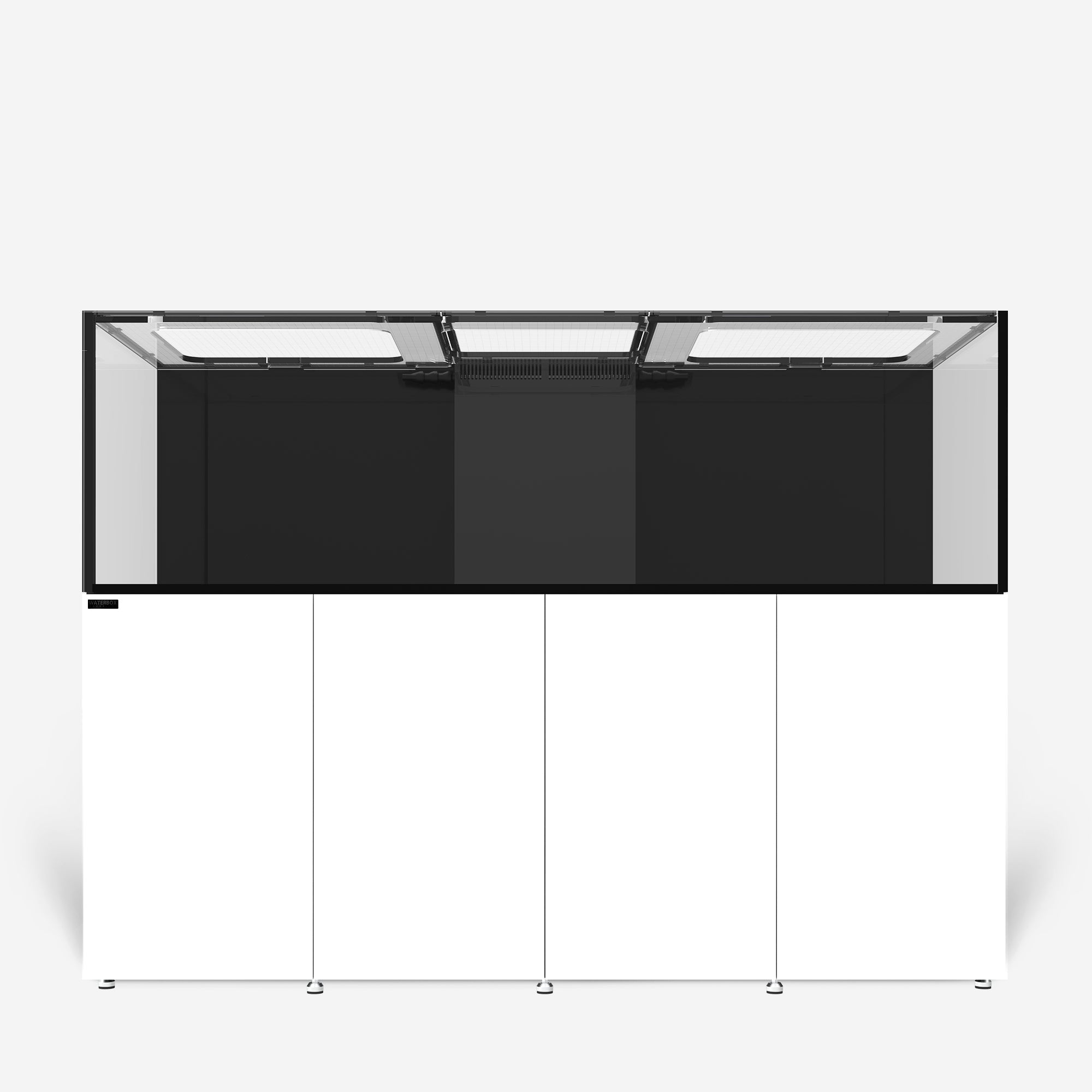

The REEF LX cabinetry system arrives fully assembled, utilizing robust 30mm aluminum framing and sleek exterior paneling in white or black.


Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Electrical Compartment makes it easy to maintain controllers and electrical components organized.

Technical Specifications

PRODUCT MODEL REEF LX 290.6 REEF LX 330.7 REEF LX 380.8
System Height with Cabinet 1,577mm/62.1" 1,577mm/62.1" 1,577mm/62.1"
Total Volume 1,091 L/288.3 gals 1,250 L/330.2 gals 1,450 L/383.1 gals
Display
Dimensions
(Length x Width x Height)
1,836 x 750 x 650mm 2,136 x 750 x 650mm 2,448 x 750 x 650mm
72.3" × 29.5" × 25.6" 84.1" × 29.5" × 25.6" 96.4" × 29.5" × 25.6"
Ultraclear Front & Sides 19mm (3/4") 19mm (3/4") 19mm (3/4")
Bottom Glass 19mm (3/4") 19mm (3/4") 19mm (3/4")
Euro-bracing Thickness 15mm (3/5″) 15mm (3/5″) 15mm (3/5″)
Aquarium Volume 808 L/213.4 gals 943 L/249 gals 1,083 L/286 gals
Glass Material Ultra-clear Low Iron glass (front, sides and euro-bracing)
Transmittance 91%
Sump Dimensions
(Length x Width x Height)
1,016 x 610 x 400mm 1,118 x 610 x 400mm 1,270 x 610 x 400mm
40" × 24" × 15.7" 44" × 24" × 15.7" 50" × 24" × 15.7"
Sump Volume 233 L/61.5 gals 257 L/67.8 gals 292 L/77.1 gals
Glass Thickness 8mm (5/16") 8mm (5/16") 8mm (5/16")
Refugium Chamber
(Max Dimensions)
250 x 518mm 300 x 518mm 350 x 518mm
9.8" × 20.4" 11.8" × 20.4" 13.8" × 20.4"
Refugium Chamber
(Min Dimensions)
200 x 518mm 230 x 518mm 250 x 518mm
7.9" × 20.4" 9.1" × 20.4" 9.8" × 20.4"
Skimmer Chamber
(Int. DIM, w/o Refugium)
547 x 518mm 649 x 518mm 801 x 518mm
21.5" × 20.4" 25.6" × 20.4" 31.5" × 20.4"
Skimmer Chamber
(Int. DIM, with Min Refugium)
342 x 518mm 414 x 518mm 546 x 518mm
13.5" × 20.4" 16.3" × 20.4" 21.5" × 20.4"
Skimmer Chamber
(Int. DIM, with Max Refugium)
292 x 518mm 344 x 518mm 446 x 518mm
11.5" × 20.4" 13.5" × 20.4" 17.6" × 20.4"
Pump Chamber
(Int. Dimensions)
180 x 518mm
7.1" × 20.4"
ATO ATO Dimensions
(Length x Width x Height)
305 x 475 x 380mm 350 x 610 x 380mm
12" × 18.7" × 15" 13.8" × 24" × 15"
ATO Volume 51 L/13.4 gals 76 L/20 gals
Glass Thickness 6mm (1/4") 6mm (1/4") 6mm (1/4")
Plumbing Main Drain 2 x DN25 (32mm/1-1/4")
Emergency Overflow DN32 (40mm/1-1/2")
Pump Return DN25 (32mm/1-1/4")
Nozzle(s) 2 x DN20
Filtration Filter Socks 2 x 180mm/7" MESH
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Cabinet Cabinet Model ALU 7230 ALU 8430 ALU 9630
Cabinet Dimensions 1,836 x 750 x 927mm 2,136 x 750 x 927mm 2,448 x 750 x 927mm
72.3" × 29.5" × 36.5" 84.1" × 29.5" × 36.5" 96.4" × 29.5" × 36.5"
Sump Compartment
(Int. Dimensions)
1,637 x 670 x 785mm 1,463 x 670 x 785mm 1,700 x 670 x 785mm
64.5"×26.4"×30.9" 57.6" × 25.7" × 32.8" 66.9" × 25.7" × 32.8"
Electrical Compartment
(Int. Dimensions)
430 x 91 x 746mm 430 x 91 x 746mm 430 x 91 x 746mm
17" × 3.6" × 29.4" 17" × 3.6" × 29.4" 17" × 3.6" × 29.4"
Aluminum Framework Heavy Duty Anti-corrosion Aluminum Alloy
Doors & Side Panels 18mm Plywood, Water-resistant PU coated
Bottom Panel 10mm PVC Board
Cabinet Color WHT-White, BLK-Black
